Re: Advice T28R Turbo
[Re: chrissy]
#1370170
22/08/2012 17:30
22/08/2012 17:30
|
h2ypr
Unregistered
|
h2ypr
Unregistered
|
Chrissy, this requires amendment to the downpipe (v-band adaptor), and requires other parts also.
It depends on price, but its a big step up from a hybrid.
GT28R's can make between 300-350bhp, so it just depends on what your setup is. Otherwise you can run low boost and still make reasonably good power.
Is it what your probably looking for? No.
Ross
|
|
|
Re: Advice T28R Turbo
[Re: chrissy]
#1370176
22/08/2012 17:42
22/08/2012 17:42
|
Joined: Jun 2010
Posts: 566 Guildford, Surrey, UK
Punto16VT
Enjoying the ride
|
Enjoying the ride
Joined: Jun 2010
Posts: 566
Guildford, Surrey, UK
|
To clarify, it's mine, is a T28R not a GT28R, already has the V-band elbow (plus clamp, if needed) has previously been fitted to a 20VT manifold, etc. etc.
No offense taken, just adding details.
Sprinty Coupe 20VT6 1949 White Abarth Punto Grande SS Stromboli Grey Alfa 159 Ti Abarth 695 Rivale
|
|
|
Re: Advice T28R Turbo
[Re: chrissy]
#1370177
22/08/2012 17:52
22/08/2012 17:52
|
h2ypr
Unregistered
|
h2ypr
Unregistered
|
Sorry - Thought it was a GT28R with a typo!! Whats the difference then? What size wheels on it? Housing size etc? Ross
|
|
|
Re: Advice T28R Turbo
[Re: chrissy]
#1370212
22/08/2012 19:22
22/08/2012 19:22
|
Joined: Jun 2010
Posts: 566 Guildford, Surrey, UK
Punto16VT
Enjoying the ride
|
Enjoying the ride
Joined: Jun 2010
Posts: 566
Guildford, Surrey, UK
|
That I can't say beyond the exhaust housing being marked as an A/R of .42, which would be quick to spool. A T28R is a T28 with roller bearings, not thrust/journal bearings, so ideal for a decatted system.
I couldn't even venture a guess as to its origins, as there is no id. plate nor other part no., and it arrived as a joblot of spares in a box, along with my 2nd Coupe 20VT. Does anyone know if a William Oscroft was on here, as it was all his stuff, since he didn't have the time to devote to getting it roadworthy again.
Last edited by Punto16VT; 22/08/2012 19:22.
Sprinty Coupe 20VT6 1949 White Abarth Punto Grande SS Stromboli Grey Alfa 159 Ti Abarth 695 Rivale
|
|
|
Re: Advice T28R Turbo
[Re: Scuderia]
#1370371
23/08/2012 05:49
23/08/2012 05:49
|
Joined: Jun 2010
Posts: 566 Guildford, Surrey, UK
Punto16VT
Enjoying the ride
|
Enjoying the ride
Joined: Jun 2010
Posts: 566
Guildford, Surrey, UK
|
Punto, can you confirm its a .42 exhaust side for sure (just nissan uses a .48 t28 from memory), I don't know the T28's well as the 16v's never had them, but if I recall the .48a/r T25/28 is one of a pair off the Nissan GTR RB26, so effectively for a 1.3l
If it is a .42a/r exhaust side, thats very small for a 2l, there plently of talk on here about the "GT28 .64ar vs.86ar". I would think it would restrict the exhaust side too much,
I'll check on the home PC That's a definite yes on the .42 A/R cast into the exhaust housing. If you dont know what it is how do you know it has roller bearings? OR if it is actually is a "T28R" 0.42 does not sound right. Obviously I can't be 100% sure, with no id. plate or other part no.s, that it's a T28R, but I do know the difference in 'feel' between a 'dry' journal bearing turbo and a roller bearing one, as I've a T25R off a Nissan 180/200SX, and an IHI RHB5 VL7 too. I'll put pictures up the moment that I get a chance, then you can all muse a bit more.
Sprinty Coupe 20VT6 1949 White Abarth Punto Grande SS Stromboli Grey Alfa 159 Ti Abarth 695 Rivale
|
|
|
Re: Advice T28R Turbo
[Re: chrissy]
#1370372
23/08/2012 07:02
23/08/2012 07:02
|
Joined: Nov 2006
Posts: 1,580 Melbourne, Australia
Scuderia
My life on the forum
|
My life on the forum
Joined: Nov 2006
Posts: 1,580
Melbourne, Australia
|
Right, well I would not be putting a restrictor in it unless you are 100% sure.
I've never heard of a "T28R" - I love it how poeple make up turbo names. Nissan ball bearing turbos are based on the GT series.
Last edited by Scuderia; 23/08/2012 07:02.
|
|
|
Re: Advice T28R Turbo
[Re: chrissy]
#1370441
23/08/2012 12:25
23/08/2012 12:25
|
group5lancia
Unregistered
|
group5lancia
Unregistered
|
I was told I need an Oil restrictor for definate Have you read this?
|
|
|
Re: Advice T28R Turbo
[Re: chrissy]
#1370482
23/08/2012 14:47
23/08/2012 14:47
|
Joined: Nov 2006
Posts: 1,580 Melbourne, Australia
Scuderia
My life on the forum
|
My life on the forum
Joined: Nov 2006
Posts: 1,580
Melbourne, Australia
|
Actually the T28R is from the Silvia S15, It does exist - Sure they exist but they are infact a GT28R (the original GT28R)
|
|
|
Re: Advice T28R Turbo
[Re: Scuderia]
#1370483
23/08/2012 14:49
23/08/2012 14:49
|
h2ypr
Unregistered
|
h2ypr
Unregistered
|
Actually the T28R is from the Silvia S15, It does exist - Sure they exist but they are infact a GT28R (the original GT28R) Which is why I got confused, as I presumed this was the one you meant. The exhaust housing from the original one, needs rotated to make fit to the coupe. However, if it came off a coupe, it should already have been done. Ross
|
|
|
Re: Advice T28R Turbo
[Re: ]
#1370486
23/08/2012 14:59
23/08/2012 14:59
|
doug20vt
Unregistered
|
doug20vt
Unregistered
|
0.42a/r is the housing size of the compressor housing on a standard turbo, are you sure you are not confusing this with the turbine housing, never heard of a 0.42a/r turbine housing
|
|
|
Re: Advice T28R Turbo
[Re: ]
#1370527
23/08/2012 17:23
23/08/2012 17:23
|
Joined: Jun 2010
Posts: 566 Guildford, Surrey, UK
Punto16VT
Enjoying the ride
|
Enjoying the ride
Joined: Jun 2010
Posts: 566
Guildford, Surrey, UK
|

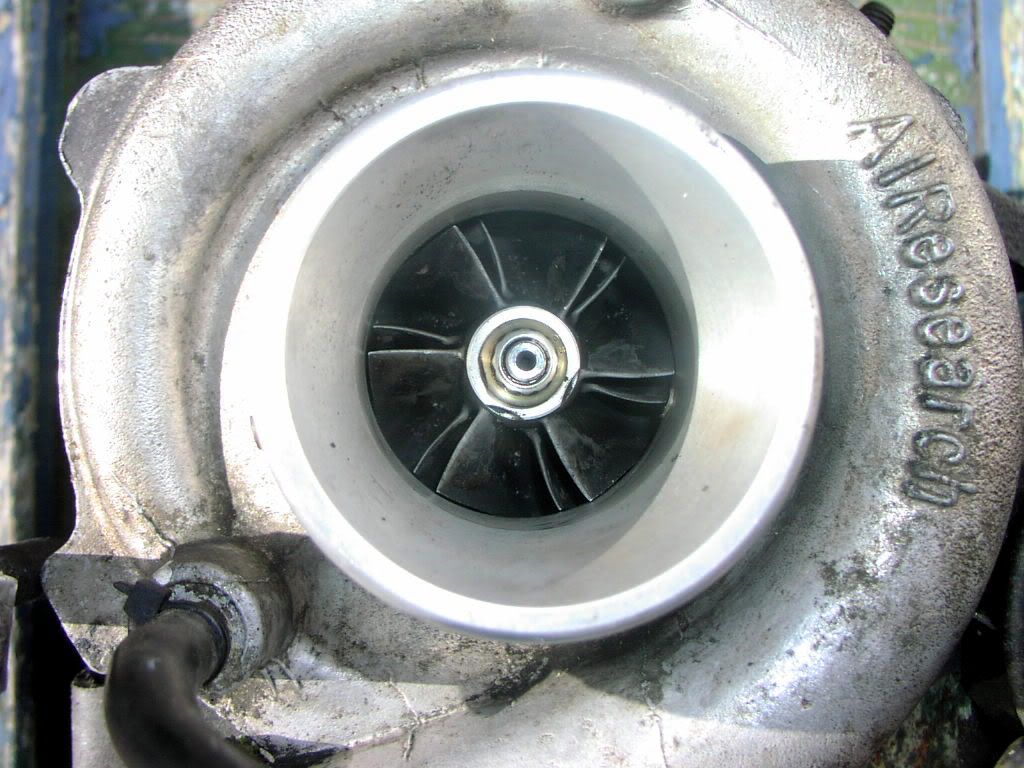

0.42a/r is the housing size of the compressor housing on a standard turbo, are you sure you are not confusing this with the turbine housing, never heard of a 0.42a/r turbine housing Actually, you're correct I did mistakenly refer to the exhaust when it was the compressor housing with .42 cast outside and stamped inside the throat. My error (need sleep, it's been a mad few days is my only excuse).
Sprinty Coupe 20VT6 1949 White Abarth Punto Grande SS Stromboli Grey Alfa 159 Ti Abarth 695 Rivale
|
|
|
Re: Advice T28R Turbo
[Re: Punto16VT]
#1370634
23/08/2012 22:40
23/08/2012 22:40
|
doug20vt
Unregistered
|
doug20vt
Unregistered
|
i would be very surprised if anyone has ever made a ball bearing standard turbo, it just wouldn't be worth it, the CHRA itself would be about £500 minimum then you would have all the machining to do, you wouldn't get any change out of £700
there was a hybrid called an ultraspool which used a ball bearing CHRA but it was fitted with a larger compressor wheel although it retained the standard turbine wheel and v band housing
have you measured the inducer of the compressor wheel to see if it's a standard compressor wheel or a larger one
|
|
|
Re: Advice T28R Turbo
[Re: ]
#1370731
24/08/2012 10:04
24/08/2012 10:04
|
Joined: Jun 2010
Posts: 566 Guildford, Surrey, UK
Punto16VT
Enjoying the ride
|
Enjoying the ride
Joined: Jun 2010
Posts: 566
Guildford, Surrey, UK
|
there was a hybrid called an ultraspool which used a ball bearing CHRA but it was fitted with a larger compressor wheel although it retained the standard turbine wheel and v band housing
have you measured the inducer of the compressor wheel to see if it's a standard compressor wheel or a larger one I'll take some measurements when I get a chance, I'm just wondering if it's, perhaps, one with a 'modified' configuration, like the 360 degree screwed bearings and stepped oil seal? Just trying to figure it out, it may just be a spare std. TB2810, as I've little experience of all the ins and outs of the Coupe's modification paths, although I'm quite technically knowledgeable, on ce I know the details.
Last edited by Punto16VT; 24/08/2012 10:07.
Sprinty Coupe 20VT6 1949 White Abarth Punto Grande SS Stromboli Grey Alfa 159 Ti Abarth 695 Rivale
|
|
|
|
